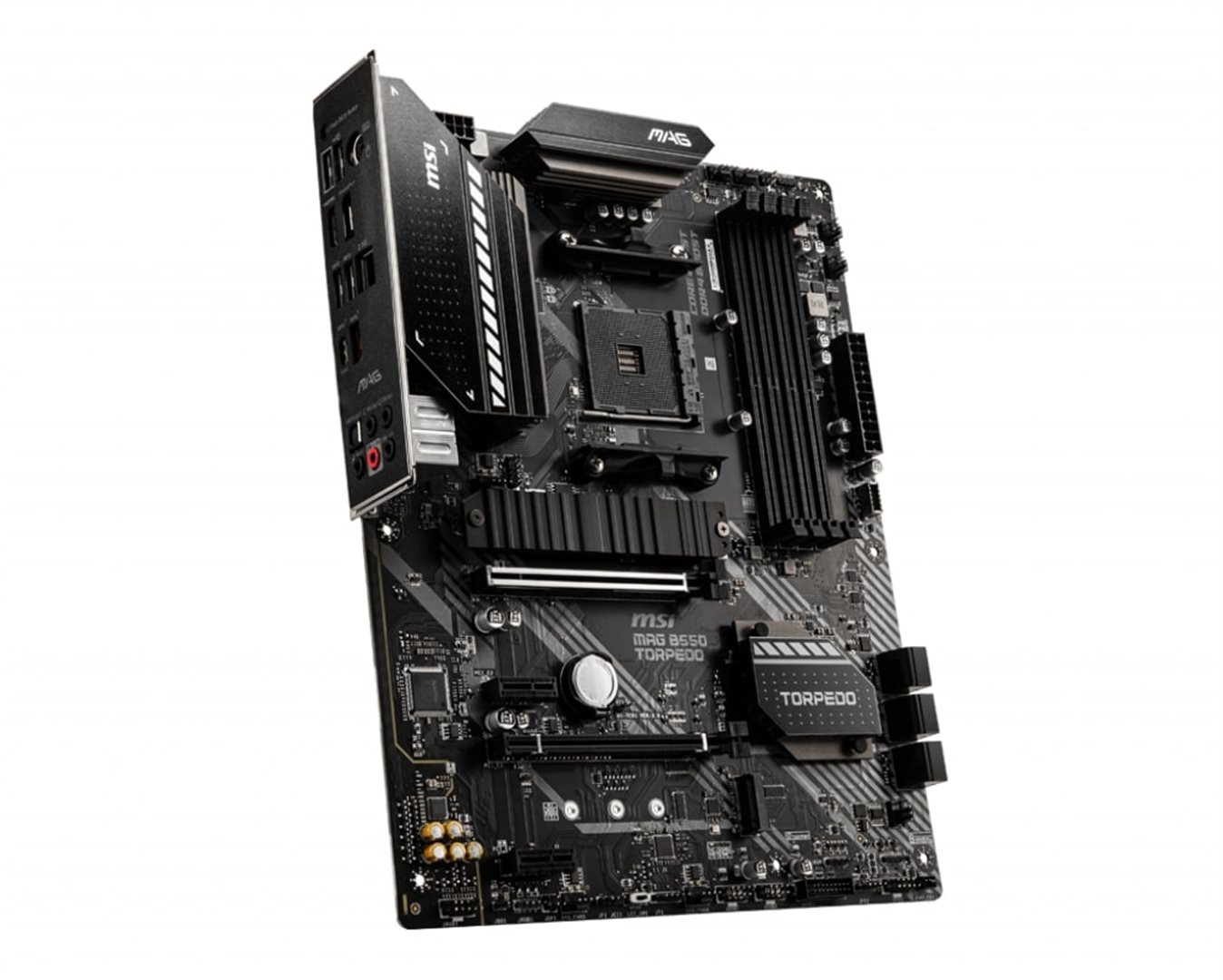

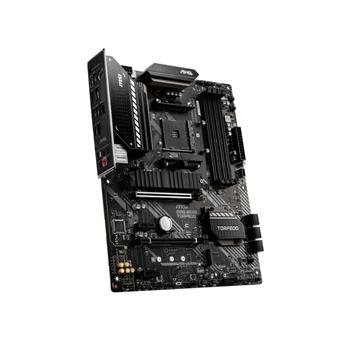

MSI MAG B550 TORPEDO/ AM4/ ATX

Chipset: AMD B550

Rozměrový formát: ATX Form Factor (305 mm x 244 mm)
Podpora pro procesory: 3rd Gen AMD Ryzen™ Desktop Processors and AMD Ryzen™ 4000 G-Series Desktop Processors
Patice procesoru: AM4

Pozice na paměti: 4x DDR4 DIMM
Podpora pro paměti:

• Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
• Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 /4533 /4600 /4733/ 4800/ 4866+ MHz by A-XMP OC MODE

Max.velikost operační paměti: 128 GB
Podpora pro paměti typu: DDR4

• Dual channel memory architecture
• non-ECC UDIMM memory
• ECC UDIMM memory (non-ECC mode)
• un-buffered memory

Grafická karta: Integrated Graphics Processor (na základě procesoru)

Multi-GPU: 2-Way AMD CrossFire™ Technology

Zvuková karta:

• Realtek® ALC1200 Codec

Síťová karta:

• Realtek® RTL8125B 2.5Gbps LAN controller

Rozšiřující sloty:

• 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1)
• 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed
• 2x PCIe 3.0 x1 slots

RAID řadič: 0, 1, 10

SATA:

• 6x SATA 6Gb/s connectors

M.2:

• 1x M2_1 PCIe 4.0/ 3.0 x4 1, Supports SATA 6Gb/s, Supports 2242/ 2260/ 2280/ 22110 storage devices
• 1x M2_2 slot Supports PCIe 3.0x4, Supports 2242/ 2260/ 2280 storage devices

USB:

• zadní USB porty ( celkem 6 )
• 2x USB 2.0 ports
• 1x USB 3.2 Gen 2 10Gbps Type-C port
• 1x USB 3.2 Gen 2 10Gbps port
• 2x USB 3.2 Gen 1 5Gbps Type-A ports
• přední USB porty ( celkem 7 )
• 2x USB 3.2 Gen 1 5Gbps ports
• 1x USB 3.2 Gen 1 5Gbps Type-C port
• 4x USB 2.0 ports

Interní porty:

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 6x SATA 6Gb/s connectors
• 2x M.2 slots (M-Key)
• 1x USB 3.2 Gen 1 5Gbps Type-C port
• 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
• 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin water-pump fan connector
• 6x 4-pin system fan connectors
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Chassis Intrusion connector
• 2x 4-pin RGB LED connectors
• 2x 3-pin RAINBOW LED connectors
• 1x TPM module connector
• 1x Clear CMOS jumper

Externí porty:

• PS/2 Combo Port
• 1x DisplayPort
• 1x 2.5G LAN Port
• 1x USB 3.2 Gen 2 10Gbps (Type-A)
• HD Audio Connectors
• Flash BIOS Button
• 2x USB 2.0 Port
• 1x HDMI Port
• 2x USB 3.2 Gen 1 5Gbps (Type-A)
• 1x USB 3.2 Gen 2 10Gbps (Type-C)
• Optical S/PDIF OUT

Stránka výrobce: https://www.msi.com/Motherboard/MAG-B550-TORPEDO
